IBM Memory Expansion Card

Product ID: 69Y1888 FRU: 88Y5361

Original description: IBM x3850 X5 and x3950 X5 Memory Expansion Card – 69Y1888; Warranty 12 months

Price: 8.500.000 ₫

* Giá trên chưa bao gồm VAT*

Kho: Sẵn hàng

Số lượng:

SBB
number
Option
number
Feature
code
Memory description
Memory Cards
88Y5361
69Y1888
A14D

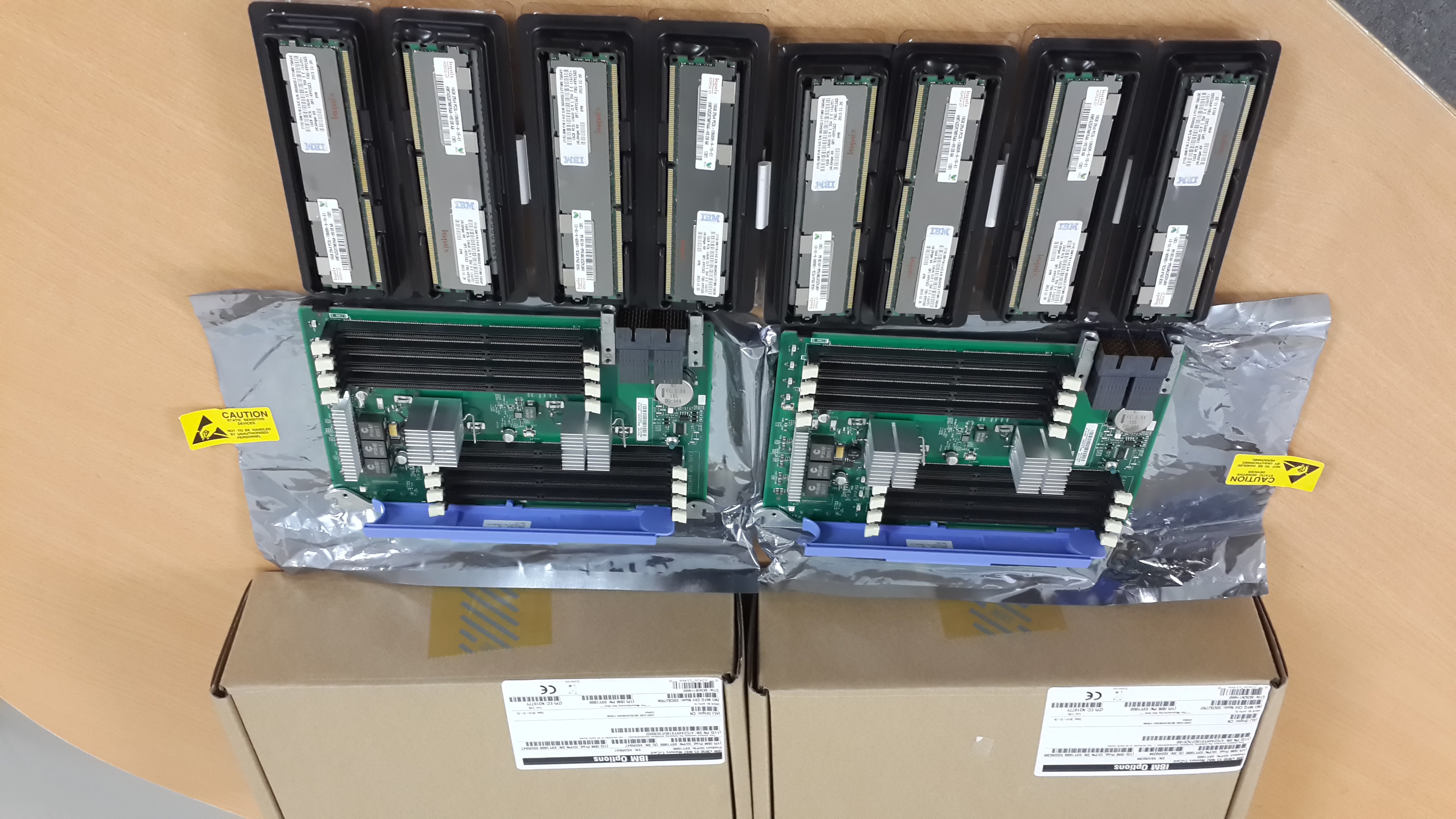

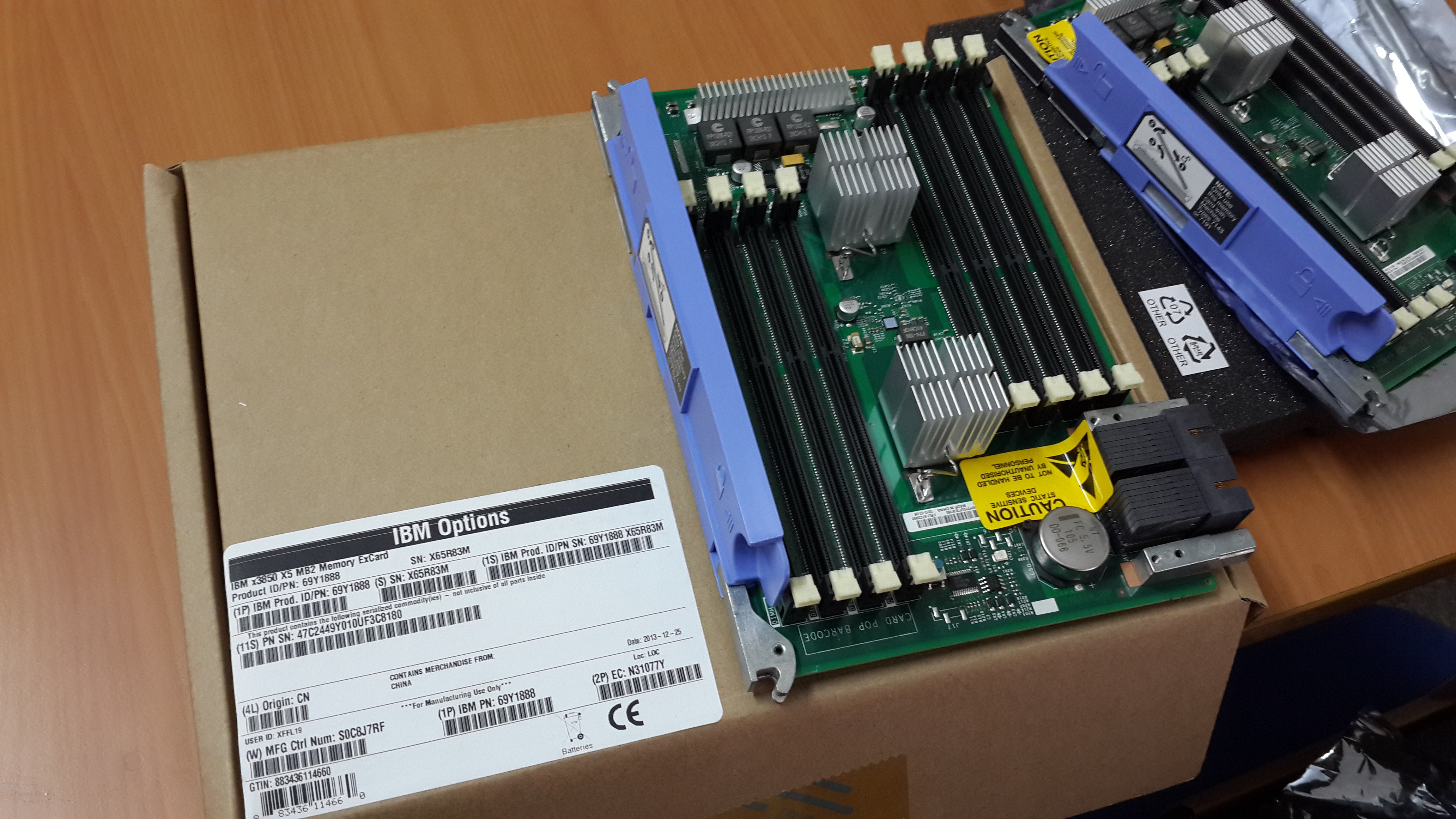

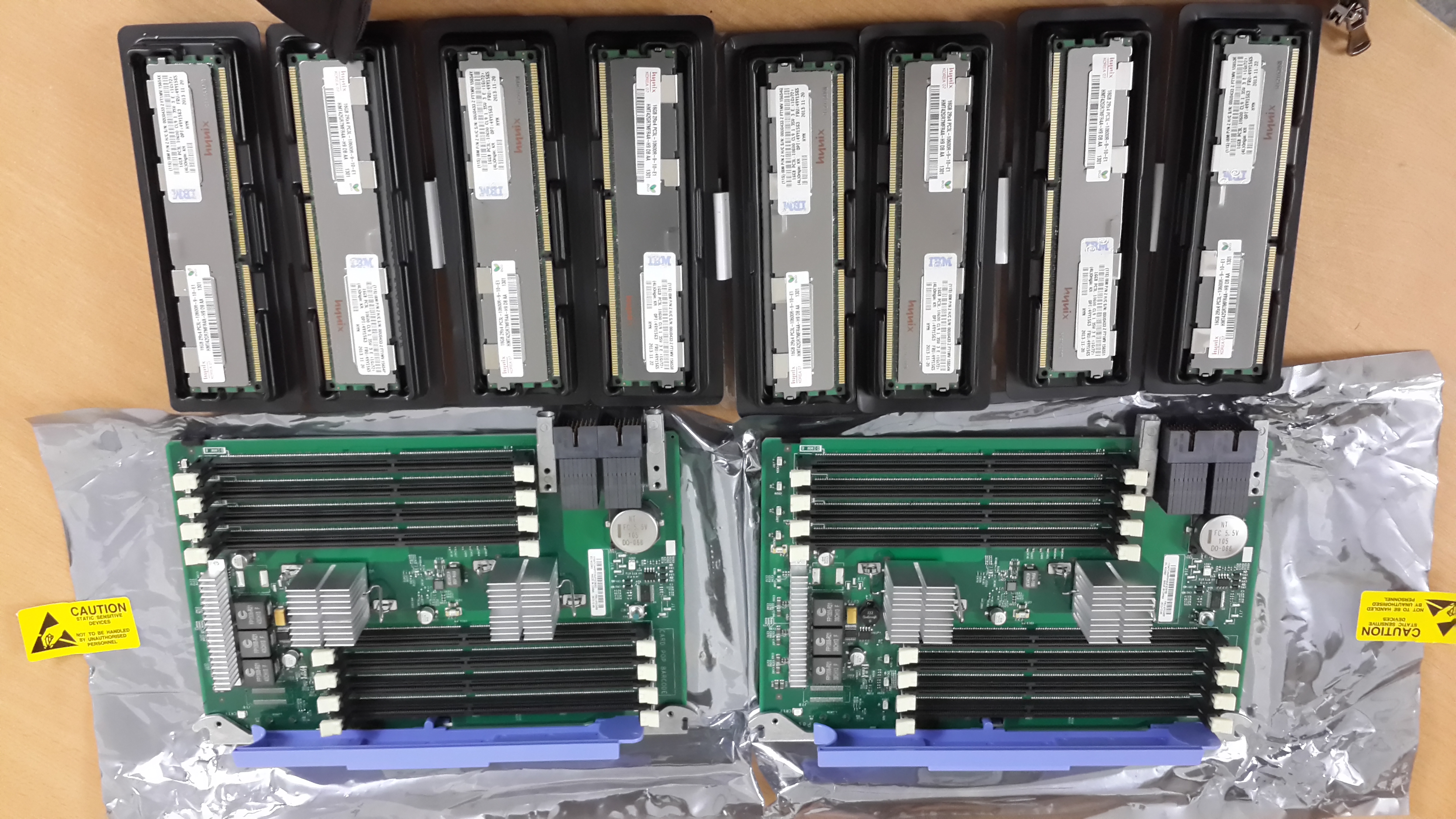

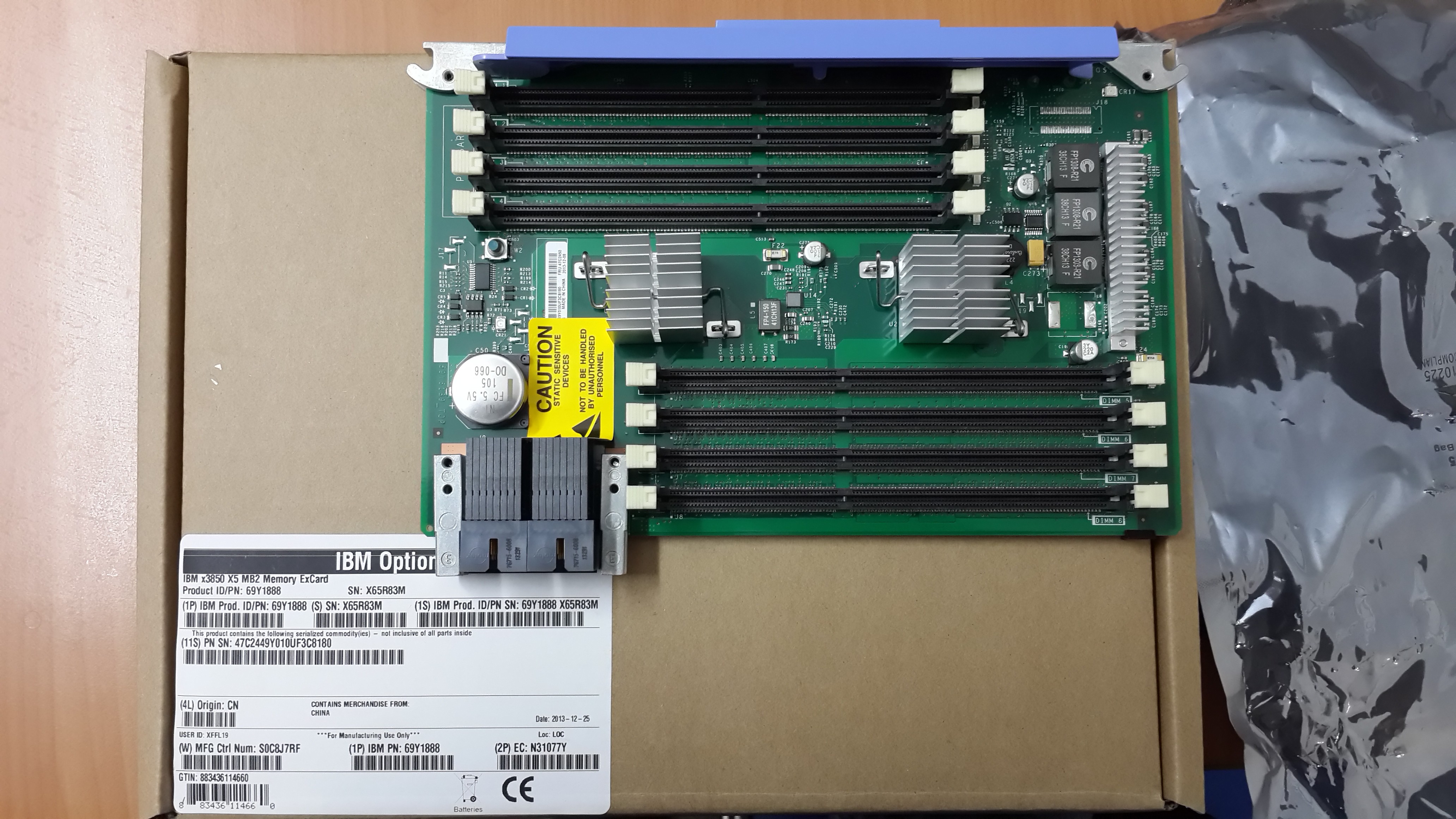

IBM x3850 X5 and x3950 X5 Memory Expansion Card
Memory DIMMs
44T1597
44T1599*
1713
4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM
46C7476
46C7482*
1706
8GB (1x8GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM
46C7477
46C7483*
1707
16GB (1x16GB, 4Rx4, 1.5V) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM
49Y1389
49Y1407
8942
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM
49Y1382
49Y1400
8939
16GB (1x16GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM
44T1587
44T1592*
1712
2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM
49Y1381
49Y1399
A14E
8GB (1x8GB, 4Rx8, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM
90Y3100
90Y3101
A1CP
32GB (1x32GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM
49Y1532
2429
2GB MAX5 1x2GB 1Rx8 1.5V PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM
49Y1534
2431
4GB MAX5 1x4GB DualRankx8 PC310600 CL9 ECC DDR3 1333MHz LP RDIMM
49Y1535
2432
8GB MAX5 1x8GB QuadRankx8 PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM
49Y1536
2433
16GB MAX5 1x16G QuadRankx4 PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM
90Y3171
A1MH
4GB MAX5 (1x4GB, 2Gb, 2Rx8, 1.35V) PC3L-10600R-999 LP ECC RDIMM
90Y3205
A1R2
32GB MAX5 (4GB, 4Rx4, 1.35V) PC3L-8500 DDR3-1066MHz LP RDIMM
90Y3172
A1N7
8GB MAX5 1x8GB, 4Rx8, 1.35V PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM
90Y3173
A1N8
16GB MAX5 1x16GB 4Rx4 1.35V PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM
49Y1562
49Y1563
A1QT
16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM
46C7448*
4GB (1x4GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3-1066MHz LP RDIMM
Associated Memory Options
59Y6307
6437
IBM MAX5 for System x Memory DIMM Filler


Notes:

DIMMs are DDR3-SDRAM registered, required in pairs. Memory Cards support 8 DIMMs each.
For pre-configured models (i.e. GAVs/SEOs) , a minimum of 1 Memory card and 2 DIMMs are REQUIRED for EACH installed CPU.
Maximum: Eight memory cards, each card containing four pairs of DIMMs, 64 DIMMs per node.
DIMM’s must be installed in pairs. Pairs must be matching IBM PN’s.
For memory mirroring, Card1 mirrors Card2, Card3 mirrors Card4, Card5 mirrors Card6, Card7 mirrors Card8.
Mirrored configurations require pairs of memory cards. Min sets of 4, i.e., 2 memory cards with at least 2 DIMMs populated per card, per CPU.
The Cost sensitive rules are for 1 Memory card per CPU.
The Performance Sensitive Configuration should always be used when there are 2 Memory cards per CPU – unless mirrored.
When using the Performance sensitive rules, you must skip the table entries when the associated CPU is not installed

Table 1. Standard Memory Configuration
Model Std. DIMM Configuration
B1Y 2 x 4GB (2Gb, 2Rx8) PC3L-10600R-999 LP ECC RDIMM (1.35V Capable)
B2Y, B3Y, B5Y, B6Y, B7Y, C1Y, C2Y 4 x 4GB (2Gb, 2Rx8) PC3L-10600R-999 LP ECC RDIMM (1.35V Capable)
D1Y, D2Y 32 x 4GB (2Gb, 2Rx8) PC3L-10600R-999 LP ECC RDIMM (1.35V Capable)
F1Y 96 x 4GB (2Gb, 2Rx8) PC3L-10600R-999 LP ECC RDIMM (1.35V Capable)

 Figure 1. System x3850x5 / x3950x5 Memory card layout
